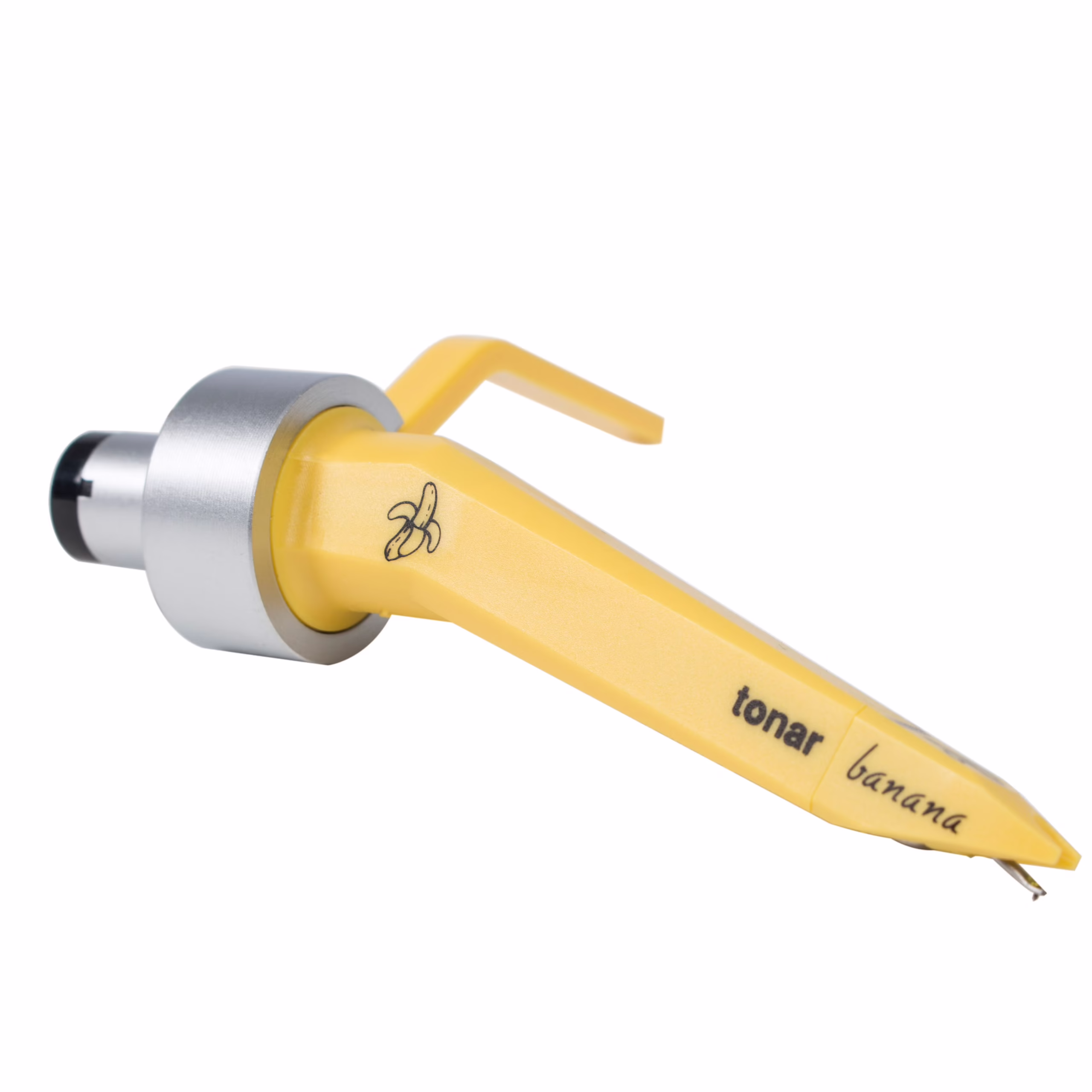

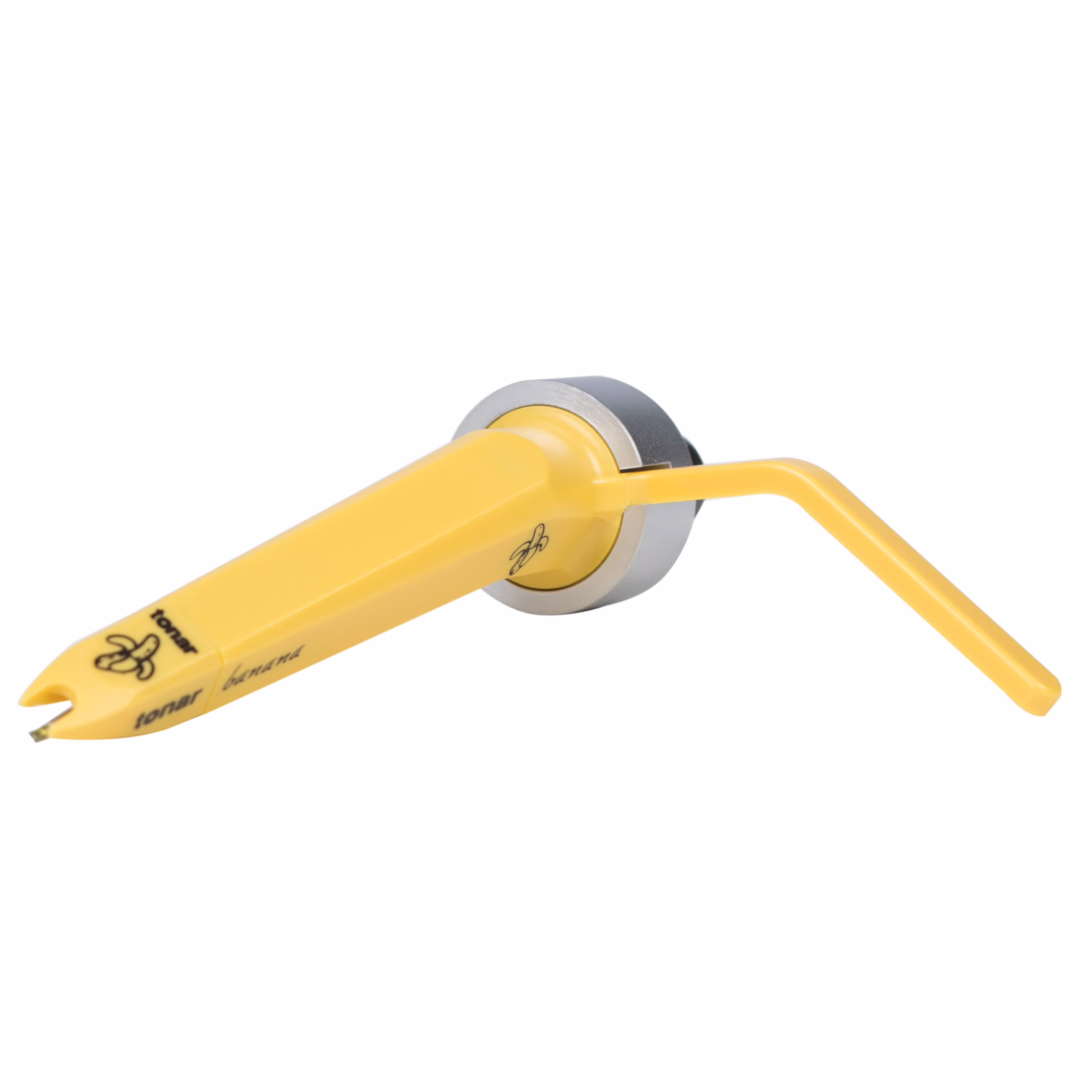

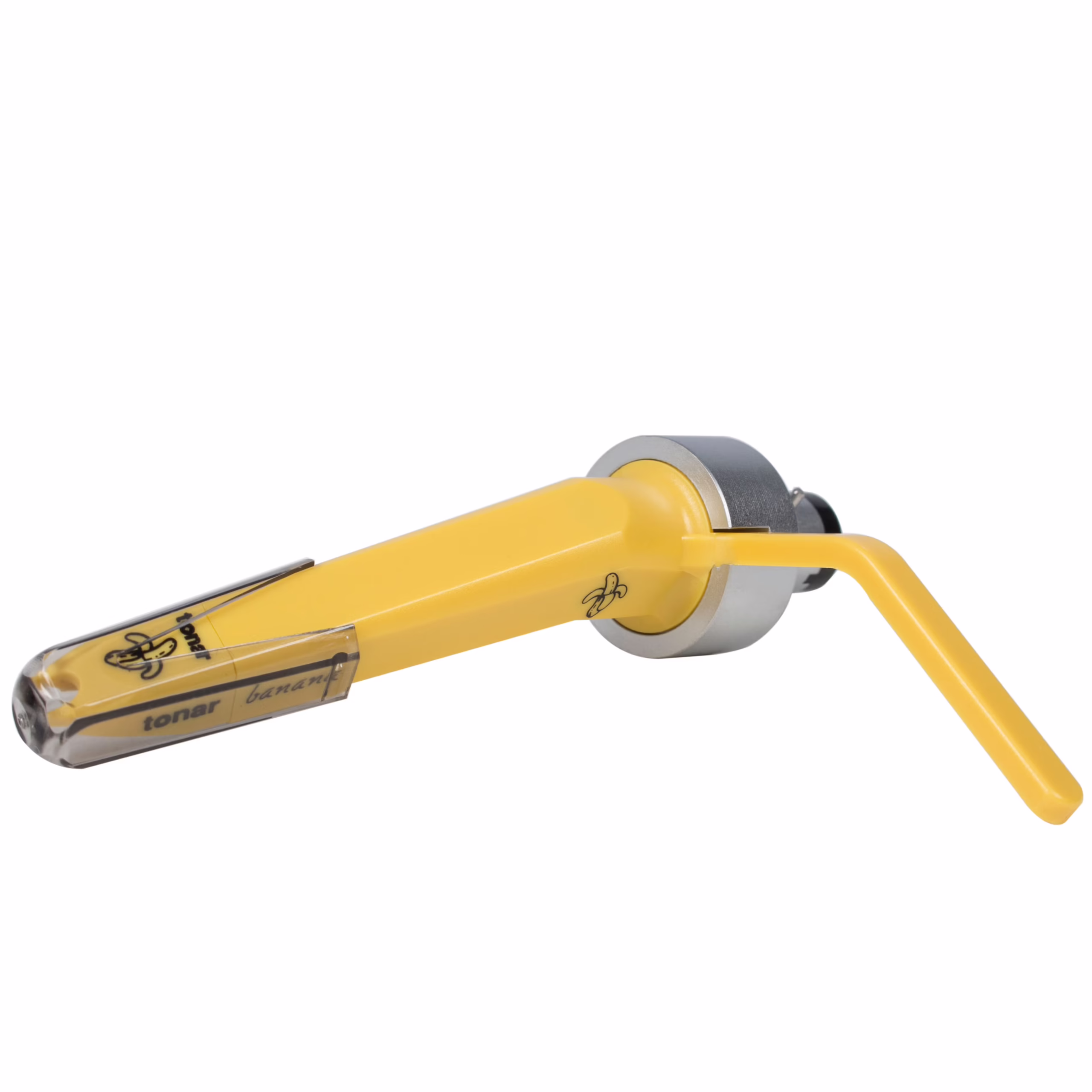

Tonar – Banana Disco Cartridge

Name: Tonar - Banana Disco Cartridge - La Belle Ecoute
SKU: 948554
Price: 99.00 EUR
Availability: InStock

99,00 €

En stock (peut être commandé)

EAN: N/A UGS : 948554 Catégorie : Cellules Phono

Spécifications :

Cartridge weight 16.0 g

Stylus tip shape/radius 0.7mil Spherical diamond

Frequency characteristics 20-20.000 Hz

Output Voltage 5.0 mV (5 cm/sec)

Channel Separation 20 dB (1 KHz)

Channel balance 2.0 dB or less (1 KHz)

Dynamic compliance 8 μm/mN

Stylus pressure 3.0 – 5.0 g (4.0 g recommended)

Load resistance 47 KΩ

Tracking ability at 315 Hz lateral 70 μM

Stylus tip material bonded diamond

Vertical tracking angle 20°

FIM distortion 1.8%

DC resistance 600Ω

Recommended load resistance 47 KΩ

Recommended load capacitance 400 pF

Scratching Suitable

Cartridge mounting system Suitable for SME-type arm only
